Mecanik M01
Restricted items are only available to purchase directly from a registered dealer. Request a quote to have your request sent to a dealer of your choice, or head to the store locator page to find a local dealer in your area. |
OVERVIEW

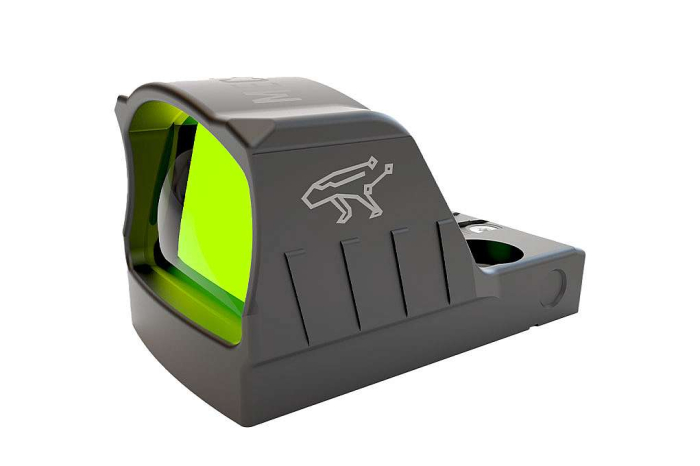

A pistol optic' s primary purpose is to provide fast target acquisition with a reasonable rate of accuracy by allowing the shooter to maintain focus on the target while aiming. The MECANIK MO1 Tactical Micro Reflex Sight does just that. During the design process, we worked with Special Operation Forces & Law Enforcement units from all over the world, in order to best suit the competition, tactical environment. It is equipped with high-tech features that will crown its unique patented exterior design.
Thanks to the aggressive side serrations on the body, the optic provides continuation of the grip surface from
the slide. The MECANIK MO1 Tactical Micro Reflex Sight TCF (Tactical Concave Face) allows the user the capability of manipulating the slide through the red dot, without touching the reflex glass. This feature further enhances its usability by allowing the slide to be racked against your waistband, while manipulating the firearm with one hand.
Due to the high-tech Motion Sensor in the MECANIK MO1, the battery life is preserved when the optic is not in use. Its Light Sensor automatically adjusts the brightness of the red dot, in order to match ambient light and maintain visibility. The MECANIK MO1 Tactical Micro Reflex Sight has a 3 MOA red dot, which has been identified as the ideal dot size for urban environments. Finally, the MECANIK MO1 has the capability of Co- Witnessing with your favorite Iron Sights.
MECANIK is proud to give you the most efficient, reliable, and robust electronic sighting system in the world.
TECHNICAL SPECS
MODEL | MO1 Tactical Micro Reflex Sight |
OPTIC SPECs |
|
Operating principle: | Reflex collimator sight with LED |
Optical magnification | Optical magnification—1X |
Aiming dot size: | 3 MOA/Red |
Wavelength | 650nm |
Parallax Free | Yes |
Unlimited Eye Relief | Yes |
Lens | Glass |
Colored Coating | Yes |
Anti-reflex, all surfaces and high transmission | Yes |
ELECTRONIC SPECs |
|
Light Source | Super LED |
Power Source | Battery |
Battery type | CR2032 |
Battery life - Day time use: | 60,000 hours |
Battery Position | Bottom |
Brightness Control | Automatic |
Motion Sensor | Yes |
Low Battery Warning | Yes |
Auto-turn off | Yes |
PHYSICAL DIMENSION |
|
Window Dimensions | 0.83x0.62 inch/22x15.8 mm |
Optic Dimensions(LxWxH) | 1.61×0.98×0.93 inch/40.8x25x23.5mm |
Weight (with Battery) | 20g/0.70 oz |
MECHANICAL DATA |
|
Frame | High Quality CNC Machined 6061 T6 Aluminum |
Surface treatment | Anodized |
Adjustment | 1 MOA (100 MOA Windage & Elevation) |
Optic Interface Patern | Shield RMSc |
ENVIRONMENTAL FACTORS |
|
Storage Temp | -40℃~60℃ |
Working Temp | -30℃~55℃ |
Waterproof | IPX7 with its original interface |
48 Hours Salt Spray Test | Rustproof |
