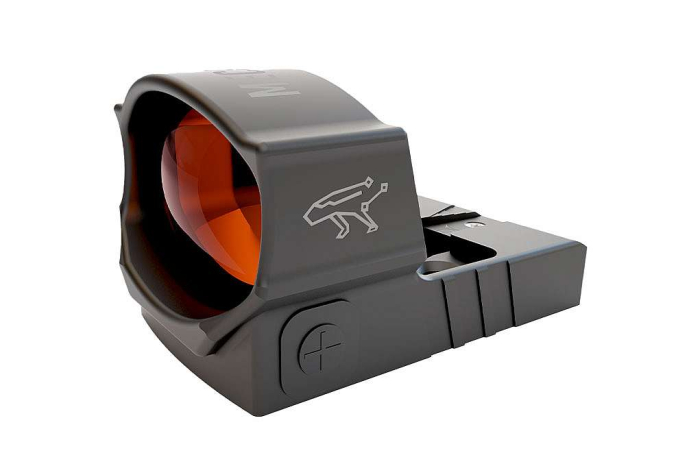

Mecanik M02
 | Restricted items are only available to purchase directly from a registered dealer. Request a quote to have your request sent to a dealer of your choice, or head to the store locator page to find a local dealer in your area. |
OVERVIEW
A pistol optic' s primary purpose is to provide fast target acquisition with a reasonable rate of accuracy by allowing the shooter to maintain focus on the target while aiming. The MECANIK MO2 Versatile Reflex Sight is designed for general purposes such as Target Shooting, Self Defense, Home Defense and Hunting. During the design process, we worked with Professional Target and Competition Shooters from all over the world. It is equipped with high-tech features that will crown its unique patented exterior design.
Thanks to the aggressive side serrations on the body, the optic provides continuation of the grip surface
from the slide. The MECANIK MO2 Versatile Reflex Sight TCF (Tactical Concave Face) allows the user the capability of manipulating the slide through the red dot, without touching the reflex glass. This feature further enhances its usability by allowing the slide to be racked against your waistband, while manipulating the firearm with one hand.
The MECANIK MO2 Versatile Reflex Sight has 3 MOA red dot, which is the ideal dot size for Target Shooting, Self Defense, Home Defense and Hunting. The MO2 is equipped with a user friendly manual interface allowing for increase or decrease in brightness of the red dot.
MECANIK is proud to give you the most efficient, reliable, and robust electronic sighting system in the world.
What Makes The MECANIK MO2 Versatile Reflex Sight Superior:
- It was Designed for Target Shooting, Self Defense, Home Defense and Hunting
- Manual Adjustments with 10 brightness settings
- Because of its high quality SUPER LED, it has a clearer dot compared to its competitors
- Wide optical lens, for better target acquisition
- Parallax free
TECHNICAL SPECS
TECHNICAL SPECS
MODEL | MO2 Versatile Reflex Sight |
OPTIC SPECs |
|
Operating principle: | Reflex collimator sight with LED |
Optical magnification | 1x |
Aiming dot size: | 3 MOA/Red |
Wavelength | 650nm |
Parallax Free | Yes |
Unlimited Eye Relief | Yes |
Lens | Glass |
Colored Coating | Yes |
Anti-reflex, all surfaces and high transmission | Yes |
ELECTRONIC SPECs |
|
Light Source | LED |
Power Source | Battery |
Battery type | CR2032 |
Battery life - Day time use: | 4.5 years (60,000h) at lowest setting, 3,000h at middle brightness |
Battery Position | Bottom |
Brightness Control | Manual 10 (2 NV+8 Daylight) |
Motion Sensor | NO |
Low Battery Warning | Yes |
Auto-turn off | Yes |
PHYSICAL DIMENSION |
|
Window Dimensions | 1.1x0.79 inch/28x20 mm |
Optic Dimensions(LxWxH) | 1.85×1.24×1.08 inch/47x31.5x27.5mm |
Weight (with Battery) | 31g/1.09 oz |
MECHANICAL DATA |
|
Frame | High Quality CNC Machined 6061 T6 Aluminum |
Surface treatment | Anodized |
Adjustment | 1 MOA (100 MOA Windage & Elevation) |
Optic Interface Patern | Vortex® Venom® |
ENVIRONMENTAL FACTORS |
|
Storage Temp | -40℃~60℃ |
Working Temp | -30℃~55℃ |
Waterproof | IPX7 |
48 Hours Salt Spray Test | Rustproof |
